Document Type : Original Research Article


1 Young Researchers and Elite Club, South Tehran Branch, Islamic Azad University, Tehran, Iran

2 Master of Urban Design, Faculty of Art and Architecture, Yazd University, Iran

3 Department of Biochemistry, Faculty of Biological Science, Tarbiat Modares University, Tehran, Iran


Background: For each industry, especially those that produce a lot of gases, investigating air pollution problems is so important these days. To control and reduce emissions-related outcomes, it is necessary to model and investigate concentration rates of emissions.
Methods: In the present paper, the dispersion pattern of NOx emissions from a steel production unit located in Iran was modelled by using PHAST (process hazard analysis software tool) software in F class atmospheric conditions. It is the first time that an investigation of air pollution, NOx, has been conducted in this industrial area. Hence, the dispersion ranges of emissions, durability period, the maximum ground-level concentration, and other outcomes were examined.
Results: The results demonstrated that the health of the villages’ inhabitants surrounding the factory was exposed to risk within 5.5 km. Besides, the emission concentration was extremely annoying and unhealthy for all people up to the radius of 9.6 km and for sensitive people, the elderly, and children up to the radius of 16 km. Therefore, it is recommended to the studied factory take some measures in terms of promoting control technologies and reduce emissions to extend safe boundaries up to a radius of at least 7. Moreover, a monitoring program should be done more precisely and rigorously to reduce the environmental outcomes and damages resulting from the emissions to the minimum rate

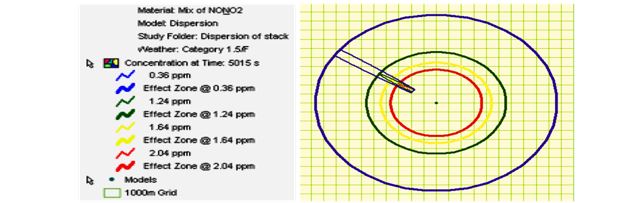

Graphical Abstract

Modeling emission dispersion pattern of nitrogen oxide (NOx) in steel production unit in Iran using Phast software


Main Subjects

  1. A. Kouidri, L. Bessissa, D. Mahi, A. Hadjadj, Experimental Environmental Study of Atmospheric Emissions in the Urban Area of the Industrial City of HassiR'mel. Journal homepage, 80(1) (2019) 1-9.
  2. T. Atimtay, M.T. Chaudhary, Air pollution due to NOx emissions in an iron-steel industry region in south-eastern Turkey and emission reduction strategies. Environmental Engineering, 11(1) (2005) 1413-1418.
  3. Ghasedi, A. Ghasedi, S. Ghorbani, F. Fallah, A Simultaneous Study of Harmful effects of work place and Environmental impacts due to Air pollution in Steel Industry. 12th National Conference on Environmental Health. Shahid Beheshti University of Medical Sciences of Iran. Faculty of Health, (2009).
  4. B. Smith, S.H. Schneider, M. Oppenheimer, G. W. Yohe, W. Hare, M.D. Mastrandrea, ...&, J.P. van Ypersele, Assessing dangerous climate change through an update of the Intergovernmental Panel on Climate Change (IPCC)“reasons for concern. Proceedings of the national Academy of Sciences, 106(11) (2009) 4133-4137.
  5. Esfandian, M. Goodarzian Urimi, A. Shokoohi Rad, Risk Assessment of Gasoline Storage Unit of National Iranian Oil Product Distribution Company using PHAST Software. International Journal of Engineering, 34(4) (2021) 763-768.
  6. Jia, S. Cheng, S. Yao, T. Xu, T. Zhang, Y. Ma, ...&, W. Duan, Emission characteristics and chemical components of size-segregated particulate matter in iron and steel industry, Atmospheric Environment, 182 (2018) 115-127.
  7. M. Almeida, J. Lage, B. Fernández, S. Garcia, M.A. Reis, P.C. Chaves, Chemical characterization of atmospheric particles and source apportionment in the vicinity of a steelmaking industry. Science of the Total Environment, 521 (2015) 411-420
  8. Si, S. Thompson, K. Calder, Energy efficiency assessment by process heating assessment and survey tool (PHAST) and feasibility analysis of waste heat recovery in the reheat furnace at a steel company, Renewable and Sustainable Energy Reviews, 15(6) (2011) 2904-2908.
  9. US Environmental Protection Agency. Air Trends Summary, Nitrogen Dioxide (NO2), 2009.
  10. M Ghiaseddin, Air pollution: Sources, effects and control, 2773, 1, University of Tehran Press, (2006).
  11. M. Leibensperger, L.J. Mickley, D.J. Jacob, S.R. Barrett, Intercontinental influence of NOx and CO emissions on particulate matter air quality. Atmospheric Environment, 45(19) (2011) 3318-3324.
  12. Baukal, Everything you need to know about NOx: Controlling and minimizing pollutant emissions is critical for meeting air quality regulations. Metal Finishing, 103(11) (2005) 18-24
  13. S. Kang, H.J. Jeong, M.M. Farid, J. Hwang, Effect of staged combustion on low NOx emission from an industrial-scale fuel oil combustor in South Korea. Fuel, 210 (2017) 282-289.
  14. Boningari, P.G. Smirniotis, Impact of nitrogen oxides on the environment and human health: Mn-based materials for the NOx abatement. Current Opinion in Chemical Engineering, 13 (2016) 133-141.
  15. Khorram, Modeling the Outcome of Chlorine Emission Based on Emergency Response Planning Values over 24 Hours Using the PHAST Software (Case Study: Bushehr Nuclear Power Plant). Journal of Military Medicine, 22(5) (2020) 492-501.
  16. A. Kouidri, L. Bessissa, D. Mahi, A. Hadjadj, Experimental Environmental Study of Atmospheric Emissions in the Urban Area of the Industrial City of HassiR'mel. Journal homepage, 80(1) (2019) 1-9.
  17. Shahpari, F. Aminsharei, M. Ghashang, Application of PHAST software in methane emission factor for startup process of gas compressors (Case study: Iran gas transmission operation district 2). Journal of Air Pollution and Health, 4(1) (2019) 27-32.
  18. Naemnezhad, A.A. Isari, E. Khayer, M.E.B. Olya, Consequence assessment of separator explosion for an oil production platform in South of Iran with PHAST Software. Modeling Earth Systems and Environment, 3(1) (2017) 43.
  19. D. Sirignano, V. Nair, B. Emerson, J. Seitzman, T.C. Lieuwen, Nitrogen oxide emissions from rich premixed reacting jets in a vitiated crossflow. Proceedings of the Combustion Institute, 37(4) (2019) 5393-5400.
  20. Y. Watson, R.R. Bates, D. Kennedy, Eds. Air Pollution, the Automobile, and Public Health. National Academies Press (US), (1988)
  21. Shelef. Nitric Oxide: Surface Reactions and Removal from Auto Exhaust, Catalysis Reviews, 11 (1975) 1-40
  22. Boningari, P.G. Smirniotis, Impact of nitrogen oxides on the environment and human health: Mn-based materials for the NOx abatement. Current Opinion in Chemical Engineering, 13 (2016) 133-141.
  23. Sperber, (Ed.). Diffuse lung disorders: A comprehensive clinical-radiologicaloverview. Springer Science & Business Media, (2012).
  24. L. Peel, R. Haeuber, V. Garcia, A.G. Russell, L. Neas, Impact of nitrogen and climate change interactions on ambient air pollution and human health. Biogeochemistry, 114(1) (2013) 121-134.
  25. EPA, Integrated science assessment for oxides of nitrogen–health criteria.US Environmental Protection Agency, Washington, DC, (2016)
  26. Zhang, Y. Zhang, H. Lin, X. Feng, T.M. Fu, Y. Wang, NOx emission reduction and recovery during COVID-19 in East China. Atmosphere, 11(4) (2020) 433.
  27. Zhao, G. Wang, H. Zhang, Y. Xu, SH. Yang, Estimation of NOx emissions from the combustion chamber of heavy-duty gas turbines. 2020 International symposium on energy environment and green development, 675 (2021).
  28. A. Provataris, N.S. Savva, T.D. Chountalas, D.T. Hountalas, Prediction of NOx emissions for high speed DI Diesel engines using a semi-empirical, two-zone model. Energy Conversion and Management, 153 (2017) 659-670.
  29. Mijling, R.J. Van Der A, Q. Zhang, Regional nitrogen oxides emission trends in East Asia observed from space. Atmospheric Chemistry and Physics, 13(23) (2013) 12003-12012.
  30. Krzywański, T. Czakiert, W. Muskała, W. Nowak, Modelling of CO2, CO, SO2, O2 and NOx emissions from the oxy-fuel combustion in a circulating fluidized bed. Fuel Processing Technology, 92(3)(2011) 590-596.
  31. Van den Elshout, K. Léger, F. Nussio, Comparing urban air quality in Europe in real time: A review of existing air quality indices and the proposal of a common alternative. Environment International, 34(5) (2008) 720-72
  32. Cogliani, Air pollution forecast in cities by an air pollution index highly correlated with meteorological variables. Atmospheric Environment, 35(16) (2001) 2871-2877.
  33. Goyal, A.T. Chan, N. Jaiswal, Statistical models for the prediction of respirable suspended particulate matter in urban cities. Atmospheric environment, 40(11) (2006) 2068-2077.
  34. S. Environmental Protection Agency, National Ambient Air Quality Standards, (2011)
  35. Kumar, P. Goyal, Forecasting of daily air quality index in Delhi. Science of the Total Environment, 409(24) (2011) 5517-5523.
  36. Ministry of Roads and Transportation, Meteorological Office of Guilan Province: www.GILMET.IR
  37. Salehi Artimani, M. Arjmand, M. Kalaei, Modeling, and assessing risk analysis of chlorine gas in water treatment plants. European journal of experimental biology, 2(6) (2012) 2151-2157.
  38. Banerjee, S.C. Barman, R.K. Srivastava, Application of air pollution dispersion modeling for source-contribution assessment and model performance evaluation at integrated industrial estate-Pantnagar. Environmental Pollution, 159(4) (2011) 865-875.
  39. Sivacoumar, A.D. Bhanarkar, S.K. Goyal, S.K. Gadkari, A.L. Aggarwal, Air pollution modeling for an industrial complex and model performance evaluation. Environmental Pollution, 111(3) (2010) 471-477.
  40. A. Taghehbaf, S. Givehchi, M. Ardestani, A. Baghvand, Modeling the consequences of potential accidents in one of the gasoline storage tanks at oil storage of yazd, in terms of explosion. International Journal of Engineering Innovation & Research, 3(4) (2014) 555-560.
  41. Bouafia, M. Bougofa, M. Rouainia, M.S. Medjram, Safety risk analysis and accidents modeling of a major gasoline release in petrochemical plant. Journal of Failure Analysis and Prevention, 20(2) (2020) 358-369.
  42. Zhou, Y. You, Z. Bai, Y. Hu, J. Zhang, N. Zhang, Health risk assessment of personal inhalation exposure to volatile organic compounds in Tianjin, China. Science of the Total Environment, 409(3) (2011) 452-459.
  43. Sharroui, M. Arjmandi, J. Salehi Artimani, comparing dispersion models of air pollutants (CO, SO2, and NO2) emitted from steel production process. Journal of applied science and agriculture, 9(3) (2014) 1169-1175.
  44. Brown, B. Graver, E. Gulbrandsen, A. Dugstad, B. Morland, Update of DNV recommended practice RP-J202 with focus on CO2 corrosion with impurities. Energy Procedia, 63 (2014) 2432-2441.
  45. Environmental Protection Agency, Guilan Province.
  46. Koop, R. McKitrick, L. Tole, Air pollution, economic activity and respiratory illness: evidence from Canadian cities, 1974–1994. Environmental Modelling & Software, 25(7) (2010) 873-885.
  47. Brunekreef, Air pollution and human health: From local to global issues. Procedia-Social and Behavioral Sciences, 2(5) (2010) 6661-6669.
